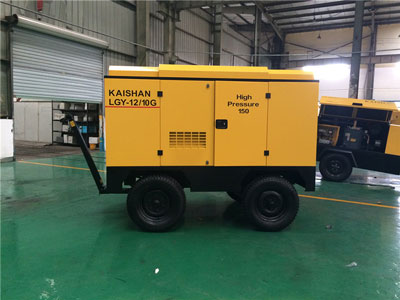

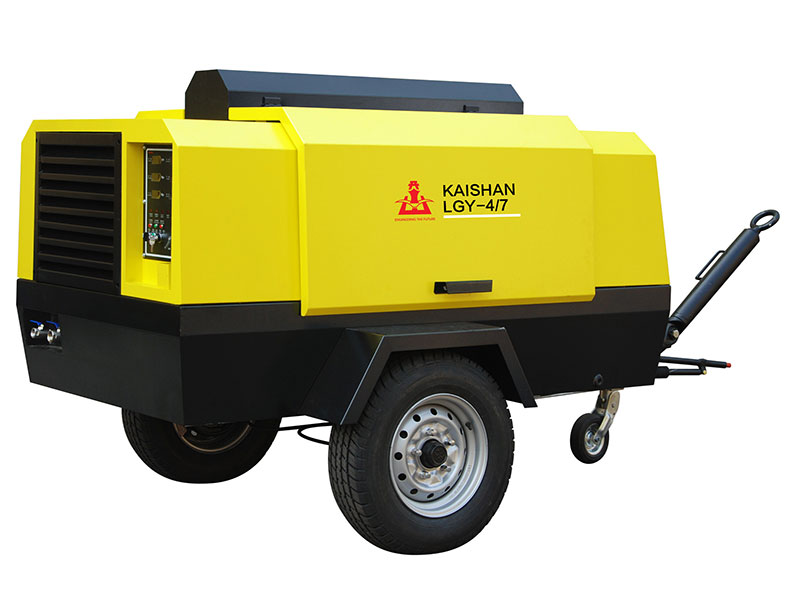

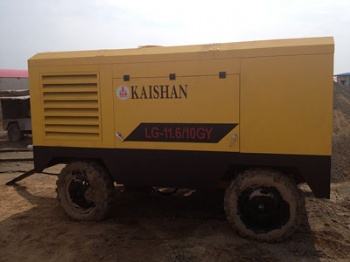

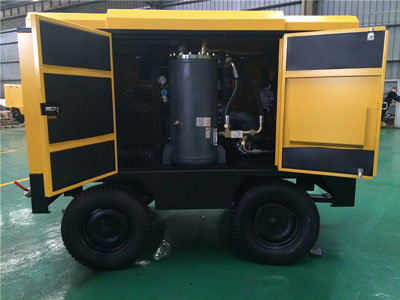

LGY series portable screw air compressor is suitable for the applications in mining, water conservancy project, transport, shipbuilding, urban construction, energy project, military project, etc. As a professional supplier of screw air compressor, KAISHAN also provides custom products to satisfy customers’ different demands.
Brief parameters
Working Pressure: 8(116)-18(261) Bar (Psi)
Free Air Delivery: 12(430)- 17(599) m³/min(CFM)
Power: 70(90)- 265(360) KW (HP)
Features
1. High reliability
LGY series portable screw air compressor adopts our patented SKK and SKY head, with less components and no quick-wear spare parts. Thus this air compressor features reliable operation and long service life, offers an overhaul as long as 40,000-80,000h.
2. Easy operation and maintenance
The high degree automation allows for unattended operation.
3. Outstanding power balance
No unbalanced inertia force is observed. The air compressor runs steadily at a high speed without a base under it, making it extremely applicable for portable use. It also has advantages of small size, light weight and small foot print.
4. Wide adaptability
KAISHAN screw air compressor equips an enforcing air supply system, making the volume flow not affected by the exhaust pressure. This ensures a high efficiency within a wide range of rotary speed.
Technical Parameters
| Model | Working pressure | Air consumption | Motor power | Connector | Dimension | Weight | ||
| Bar | Psi | m³/min | CFM | (kW/HP) | mm | kg | ||
| LG-6.2/8GY | 8 | 116 | 6.2 | 219 | 37 / 50 | 1-G¾, 1-G1½ | 3120*1445*1480 | 1120 |
| LG-7.0/8GY | 8 | 116 | 7 | 247 | 45 / 60 | 1-G¾, 1-G1½ | 3423*1445*1480 | 1200 |
| LG-10/8GY | 8 | 116 | 10 | 371 | 55 / 75 | 1-G¾, 1-G1½ | 3390*1585*1550 | 1200 |
| LG-13/8GY | 8 | 116 | 13 | 458 | 75 / 100 | 1-G2, 1-G1¾ | 2700*1700*1700 | 1750 |

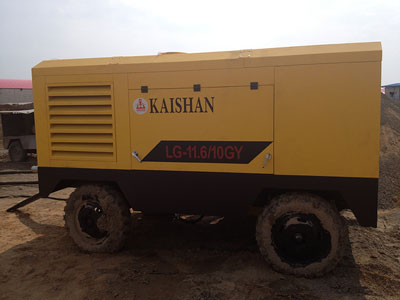

| LG-11.6/10GY | 10 | 145 | 11.6 | 410 | ||||
| LG-9.3/13GY | 13 | 190 | 9.3 | 328 | ||||
| LG-16/8GY | 8 | 116 | 16 | 583 | 90 / 125 | 1-G2, 1-G1¾ | 2730*1680*1800 | 1910 |
| LG-13/10GY | 10 | 145 | 13 | 459 | ||||
| LG-11.6/13GY | 13 | 190 | 11.6 | 410 | ||||
| LG-20/8GY | 8 | 116 | 20 | 706 | 110 / 150 | 1-G2, 1-G1¾ | 3065*1835*2000 | 3115 |
| LG-16/10GY | 10 | 145 | 16 | 565 | 3070 | |||
| LG-13.5/13GY | 13 | 190 | 13.5 | 476 | 3030 | |||
| LG-22/8GY | 8 | 116 | 22 | 775 | 132 / 180 | 1-G2, 1-G1¾ | 3065*1835*2000 | 3150 |
| LG-20/10GY | 10 | 145 | 20 | 706 | 3115 | |||
| LG-16/13GY | 13 | 190 | 16 | 565 | 3070 | |||
| LG-13/17GY | 17 | 247 | 13 | 459 | 132 / 180 | 1-G2, 1-G1¾ | 3445*1600*2030 | 3450 |
| LG-27/8GY | 8 | 116 | 27 | 954 | 160 / 220 | 1-G2, 1-G1¾ | 3950*1820*2285 | 5000 |
| LG-23/10GY | 10 | 145 | 23 | 811 | 3910*1820*2285 | 3660 | ||
| LG-20/13GY | 13 | 190 | 20 | 705 | 3630 | |||
| LG-30/8GY | 8 | 116 | 30 | 1057 | 185 / 250 | 1-G2, 1-G1¾ | 4050*1950*2440 | 5000 |
| LG-21/13GY | 13 | 190 | 21 | 740 | 3910*1820*2285 | 3900 | ||
| LG-17/18GY | 18 | 261 | 17 | 599 | 185 / 250 | 1-G2, 1-G1¾ | 4115*1820*2295 | 4200 |
| LG-30/8GBY | 8 | 116 | 30 | 1057 | 200 / 265 | 1-G2, 1-G1¾ | 4050*1950*2440 | 5000 |
| LG-22/13GBY | 13 | 190 | 22 | 775 | 3910*1820*2285 | 3900 | ||
| LG-22/17Y | 17 | 246 | 22 | 775 | 200 / 265 | 1-G2, 1-G1¾ | 3950*1820*2250 | 5000 |
| LG-35/8GY | 8 | 116 | 35 | 1234 | 200 / 265 | 1-G2, 1-G1¾ | 4050*1950*2440 | 5000 |
| LG-30/10GY | 10 | 145 | 30 | 1057 | ||||
| LG-27/13GY | 13 | 189 | 27 | 952 | ||||
| LG-40/8GY | 8 | 116 | 40 | 1410 | 220 / 295 | 1-G2, 1-G1¾ | ||
| LG-40/8GBY | 8 | 116 | 40 | 1410 | 250 / 335 | 1-G2, 1-G1¾ | ||
| LG-35/10GY | 10 | 145 | 35 | 1234 | 250 / 335 | 1-G2, 1-G1¾ | ||
| LG-46/8GY | 8 | 116 | 46 | 1621 | ||||
| LG-40/10GY | 10 | 145 | 40 | 1410 | ||||
