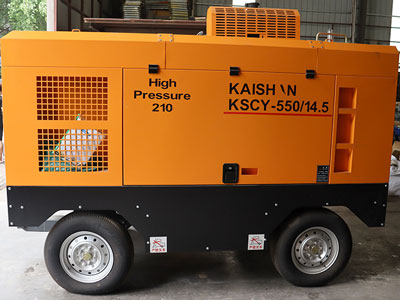

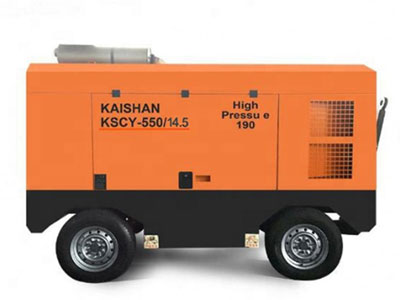

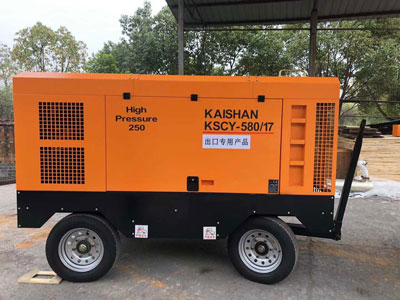

KAISHAN is a professional supplier of screw compressor on the Chinese market. KSCY series portable air compressors have been widely recognized by our customers. The product advantages have been listed below. Please contact us for any questions about our air compressor.
Key Parameters
Working Pressure: 8(116) - 20(300) Bar (Psi)
Free Air Delivery: 6(220) - 21(750) m³/min (cfm)
Power: 55 (75) – 240(310) KW (HP)
Features

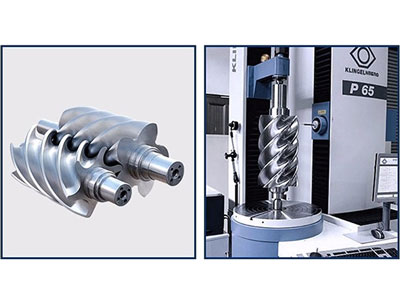

1. KSCY series portable screw air compressor adopts the newly developed rotor tooth profile for main structure of the diesel engine. Each type of head adopts solid axial bearing and radial bearing, so offering superior performance and longer service life.
2. Triple shaft seal is applied in key parts to eliminate leakage problems. Wear resistant bushing and O-ring are precisely ground for high maintainability. Each product features superior performance and efficiency, providing large exhaust capacity with small motor horsepower. Oil cooler is designed according to the actual working conditions in China, with a large cooler and fan, so that it is suitable for working in harsh environment.
3. The air flow control system can automatically and continuously adjust the air inlet volume and rotary speed of the engine, so that the air supply and consumption are fully matched. This achieves better performance while reducing the oil consumption.

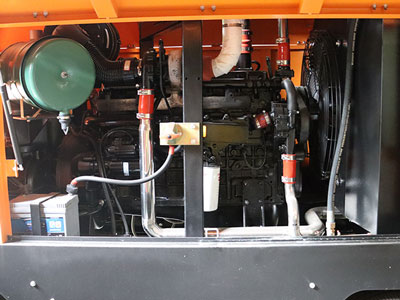

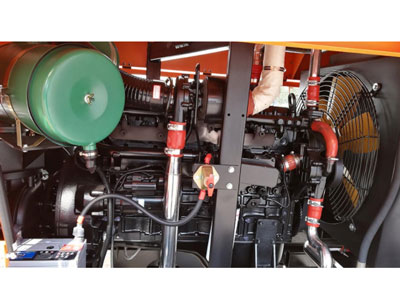

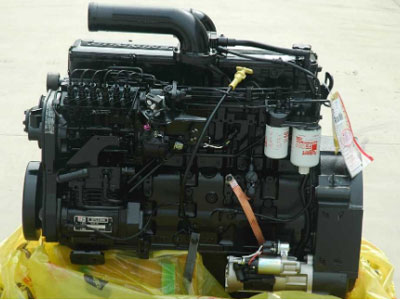

4. KAISHAN portable screw air compressor purchases engines from Commins, Yuchai and other famous brands. These engines have powerful movements, reliable operation, fuel economy and low noise, and the exhaust can reach very high environmental protection standard.

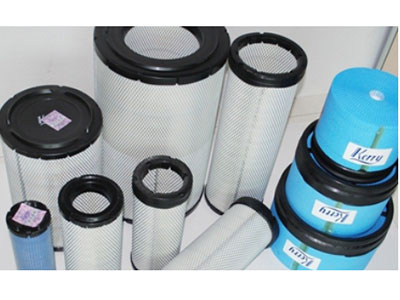

5. The equipped multi-stage air filter system effectively reduces the influence of harsh dusty environment on the engine. The precision filter layer of the main air filter filters out residual dust to protect the machine from wearing out. The safety filter element allows the air filter to be maintained without downtime to ensure safe operation.
Advantages
1. KSCY air compressor is easy to operate, allowing 24h unmanned operation. If no air is consumed, the compressor will stop automatically after long-time idling. When air is consumed, the compressor then starts automatically.
2. Wide adaptability
The air compressor is widely applied for the coating of precision electronic parts and micro-processing industries.
3. Intelligent design

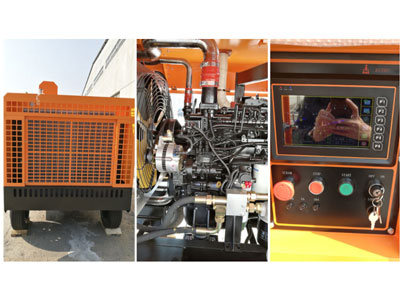

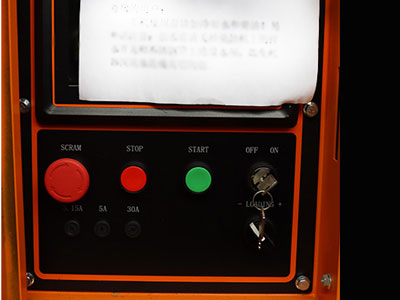

The air compressor has a perfect interface control system, cooling system and inlet air filter system.
4. Outstanding stability
The exhaust volume and temperature are stable after long-term operation, with no crash and low fault.
Technical Parameters
| Model | KSCY-220/8 | KSCY-330/8 | KSCY-425/10 | KSCY-400/14.5 | KSCY-550/13 | KSCY-550/14.5 | KSCY-580/17 | KSCY570/12-550/15 | KSCY-560/15 | KSCY-750/20 | |||||
| Air Compressor | |||||||||||||||
| Capacity | m³/min(cfm) | 6(220) | 9(330) | 12(425) | 11(400) | 15(550) | 15(550) | 17(580) | 16(570) | 15(560) | 21（750） | ||||
| Discharge pressure | Bar (Psi) | 8(116) | 8(116) | 10(145) | 14.5(212) | 13(190) | 14.5(210) | 17(250) | 12(174) | 15(218) | 20（300） | ||||
| Fuel tank capacity | L | 30 | 30 | 40 | |||||||||||
| Compression stages | 1 | ||||||||||||||
| Diesel Engine | |||||||||||||||
| Manufacturer | Xichai | Yuchai | Yuchai | Yuchai/Cummins | Yuhcai | Yuchai/Cummins | Yuhcai/Cummins | Yuchai/Cummins | Yuhcai | Yuchai | |||||
| Model | 75HP（55） | 120HP | 160HP | 160HP | 180HP | 180HP | 6CTA8.3-C260 | 180HP | 220HP | 310HP | |||||
| Rotating speed under full load | r/min | 2100 | 2100 | 2100 | 2100 | 2500 | 2200 | 2200 | 2200 | 3000 | 2200 | ||||
| Unloaded rotating speed | r/min | 1400 | 1400 | 1400 | 1400 | 1400 | 1500 | 1500 | 1500 | 1500 | 1500 | ||||
| Rated power | HP(KW) | 75HP（55） | 110(150) | 160（118） | 160（118） | 180(132) | 180(132) | 260(194) | 180(132) | 220(162) | 310（240） | ||||
| Capacity | L | 6.8 | 6.8 | 6.8 | 6.8 | 5.9 | 8.3 | 8.3 | 8.3 | 8.3 | 8.3 | ||||
| Fuel tank capacity | L | 130 | 130 | 130 | 130 | 195 | 300 | 300 | 300 | 300 | 300 | ||||
| Electric system voltage | V | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | ||||
| The Whole Air Compressor | |||||||||||||||
| Sound | ±3dB(A) | 80 | 80 | 82 | 82 | 82 | 82 | 82 | |||||||
| Weight | kg | 2200 | 2200 | 2400 | 3200 | 3200 | 3200 | 3200 | 3200 | ||||||
| Length | mm | 3000 | 3650 | 3000 | 3600 | 3600 | 3600 | 3600 | 3600 | ||||||
| Width | mm | 1880 | 1880 | 1520 | 1800 | 1800 | 1800 | 1800 | 1800 | ||||||
| Height | mm | 2060 | 2060 | 2200 | 2450 | 2450 | 2450 | 2450 | 2450 | ||||||

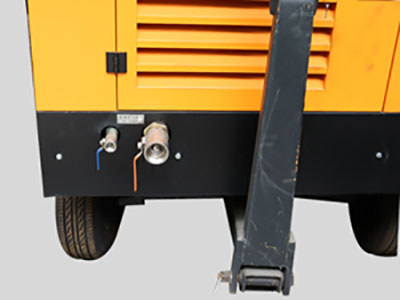

| Outlet Valve / | G11/2×1,G3/4×1 | G2×1,G3/4×1 | |||||||||||||
