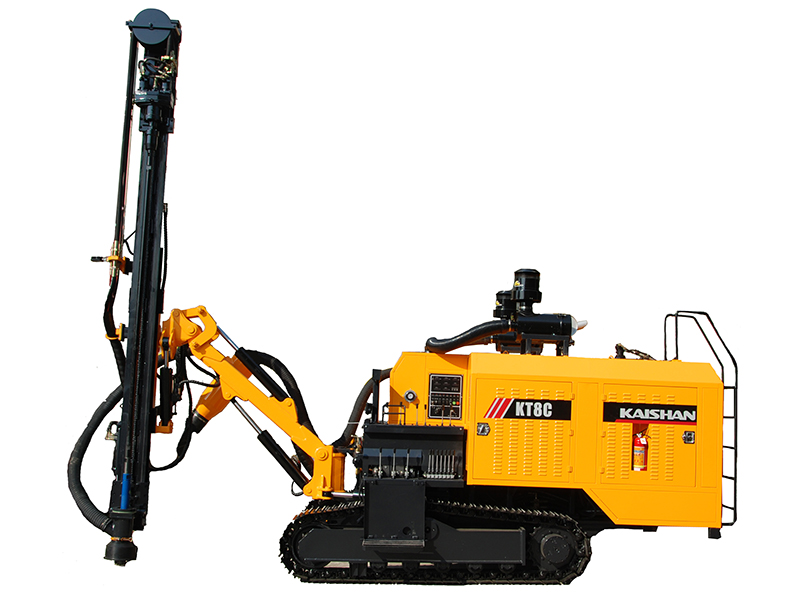

The KT8C integrated down the hole drill rig is a highly advanced piece of equipment that delivers outstanding power and energy-saving performance. The drilling device is particularly suited to the needs of small and medium open-cast mining, quarry, and infrastructure projects.
The two-terminal output of the single engine drives the screw host and hydraulic pump unit, providing a simplified structure for fast and convenient repairs.
The high air-pressure screw host satisfies the needs of high-efficiency drilling operations.

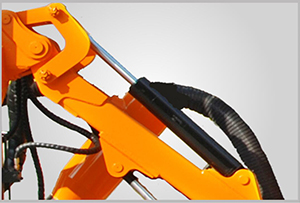

The derricking pitch mechanism is adopted with a larger pitch angle and greater smoothness.
Technical Parameters
| Drilling diameter | 90-115 mm |
| Depth of economical drilling | 30 m |
| Power of complete machine | 194 kW |
| Diesel engine | Cummins QSC8.3-C260-30 |
| Capacity of screw compressor | 13 m³/min |
| Discharge pressure of screw compressor | 17 bar |
| Outer dimensions (L×W×H) | 8000×2300×3000 mm |
| Weight | 9600 kg |

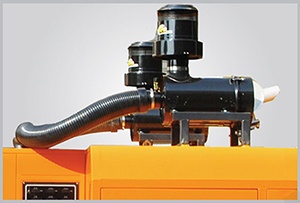

The efficient dust-collecting system reduces dust pollution in line with environmental standards.
Equipped with a Cummins China stage III engine, the drill rig meets national standards for emissions and environmental impact.
