Technical Specifications: KG420/KG420H
Supporting Power: 59KW/2400r/min
Drilling Diameter: 90-115mm
Drilling Depth: 25m

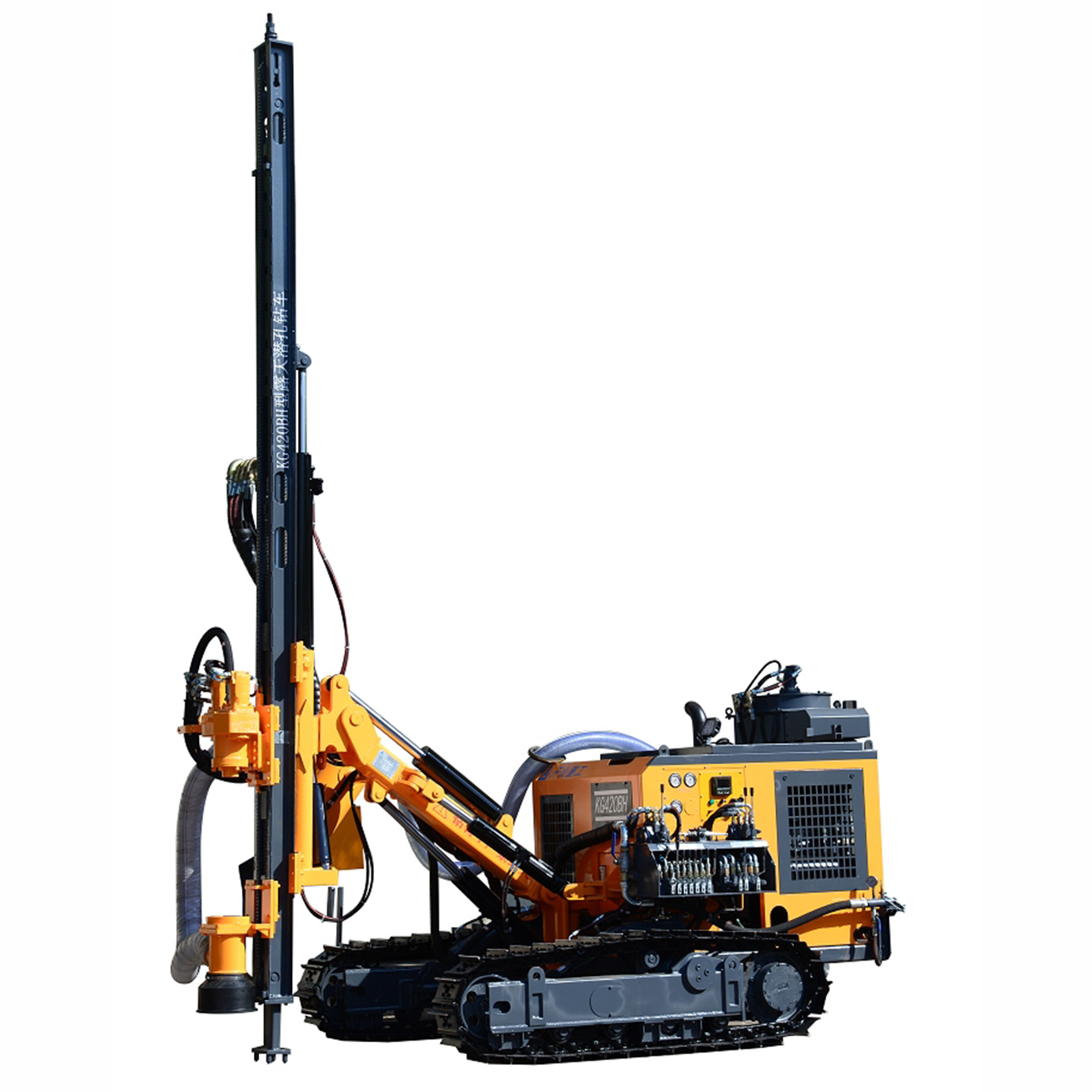

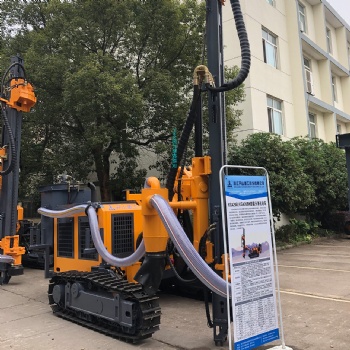

The KG420/KG420H drill rig is a hydraulic, diesel powered, self-propelled down the hole rig, designed for open use drilling operations. Equipped with a Yuchai four-cylinder engine, the drill rig meets all relevant national standards for emission and environmental impact. It moves with a folding frame track and four-wheel drive. Added track leveling cylinders and a plunger piston tramming motor improve the working pressure and increase rotary torque and revolving speed. The lifting oil cylinder and chain are expanded to promote the lifting force with reliability. A thickened profile folder is used for the housing, thus improving its intensity and rigidity. The additional ring makes handling and lifting more convenient.
The KG420H down the hole drill rig for open use is equipped with a dust collector, thus making operation more environment-friendly and reliable.
Brief Parameters
Drilling diameter: Φ90-115mm
Depth of economical drilling: 25m
Method of Feed: Oil cylinder-leaf chain
Feed stroke: 3980mm
Supporting power: YCD4R23T8-80 (59KW/2400r/min）/Yuchai YCD4R23T8-80 (59KW/2400r/min)
Technical Parameters
| Model of drill rig | KG420 | KG420H |
| Weight of complete machine | 5200KG | 5400KG |
| Outer dimensions | 6000×2150×2500mm | 6000×2250×2500mm |
| Drilling hardness | f=6-20 | |
| Drilling diameter | Φ90-115mm | |
| Depth of economical drilling | 25m | |
| Rotary speed | 0-120rpm | |
| Rotary torque | 1800N·m | |
| Lifting force | 40KN | |
| Method of Feed | Oil cylinder-leaf chain | |
| Feed stroke | 3980mm | |
| Travelling speed | 0-2.5km/h | |
| Climbing capacity | ≤30° | |
| Ground clearance | 500mm | |
| Tilt angle of Beam | Down: 135°, up: 50°, total: 185° | |
| Swing angle of boom | Left: 100°, right: 45°, total: 145° | |
| Pitch angle of drill boom | Down: 50°, up: 25°, total: 75° | |
| Swing angle of drill boom | Left: 44°, right: 45°, total: 89° | |
| Leveling angle of track | ±10° | |
| Compensation length of beam | 900mm | |
| Supporting power | YCD4R23T8-80 (59KW/2400r/min）/Yuchai YCD4R23T8-80 (59KW/2400r/min） | |
| DTH hammer | M3 | |
| Drilling rod | Φ64×3m | |
| Air consumption | 10-17m³/min | |
| Maximum height of horizontal hole | 2750mm | |
| Minimum height of horizontal hole | 750mm | |
Detail features

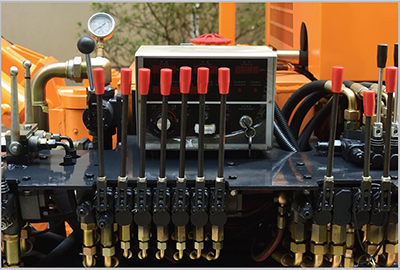

Easy Used Control Panel

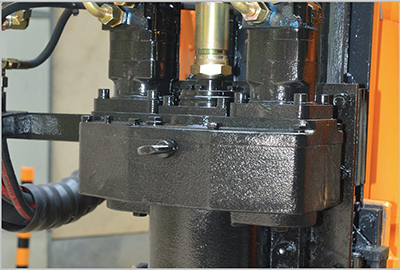

High torque gyrator

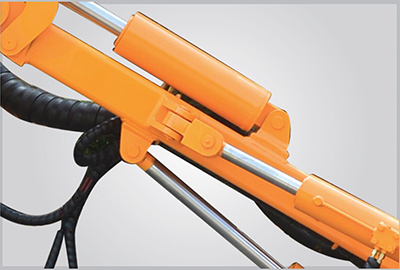

Stable hydraulic system

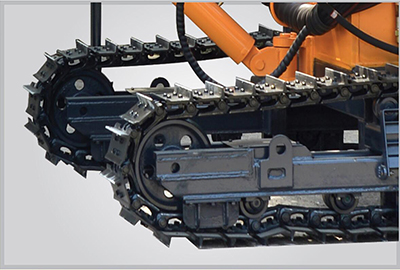

Steel track adaptable to all terrains

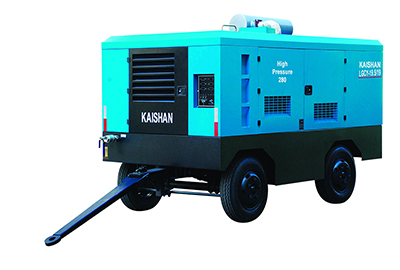

Mobile Screw Compressor
