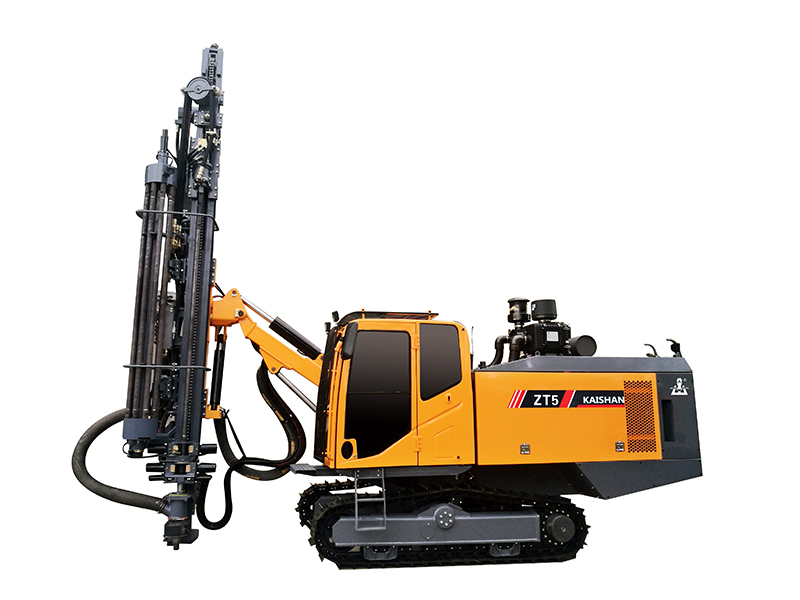

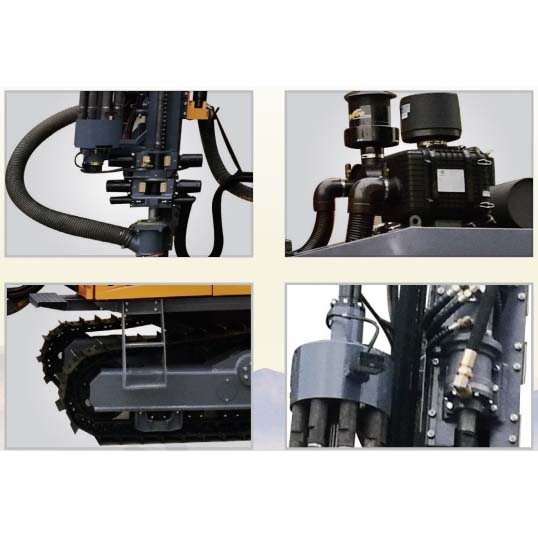

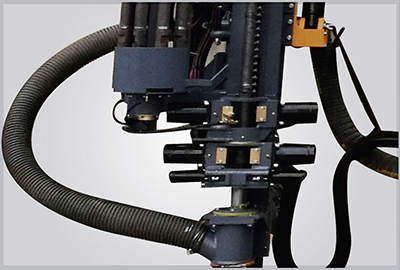

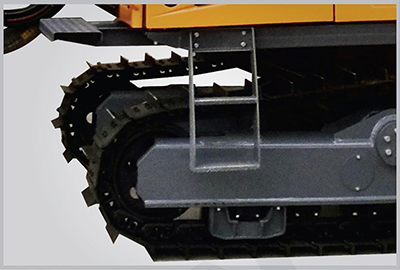

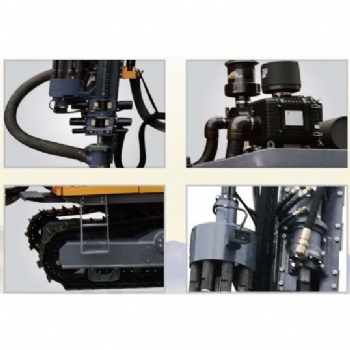

The ZT5 integrated mine drill rig for open use is an advanced piece of drilling equipment developed by Kaishan. The drilling rig is designed to meet the needs of large open-pit mines and quarries. The integrated drilling equipment combines the DTH drilling system and screw air compressor.
Technical Parameters
| Transport dimensions (L×W×H) | 8630*2100*2830mm |
| Weight | 13000Kg |
| Rock hardness | f=6-20 |
| Drilling diameter | 90-105mm |
| Ground clearance | 430mm |
| Leveling angle of track | ±10° |
| Travelling speed | 0-3Km/h |
| Climbing capacity | 25° |
| Traction | 120KN |
| Torque | 1400N.m |
| Rotation speed | 0-120rpm |
| Lifting angle of drill boom | Up 47°, down 20° |
| Swing angle of drill boom | Left 20°, right 50° |
| Swing angle of carriage | Left 95°, right 95° |
| Tilt angle of beam | 120° |
| Compensation stroke | 1200mm |
| Rotation Head stroke | 3490mm |
| Maximum propelling force | 25KN |
| Method of propulsion | Motor + roller chain |
| Depth of economical drilling | 24m |
| Number of rods | 7+1 |
| Specifications of drilling rod | Φ64x3000mm |
| DTH hammer | M3 |
| Engine | WP6240E330/ WEICHAI WP6240E330 |
| Number of cylinders | 6 |
| Rated power | 176KW |
| Rated revolving speed | 2200r/min |
| Hydraulic pump | 4* gear pump |
| Air Compressor | Zhejiang Kaishan |
| Capacity | 10m³/min |
| Discharge pressure | 15bar |
| Traveling control system | Hydraulic pilot |
| Drilling control system | Hydraulic pilot |
| Anti-Jamming | Automatic electro-hydraulic anti-jamming |
| Voltage | 24V DC |
| Safe cab | Meet the requirements of ROPS & FOPS |
| Indoor noise | Below 85dB (A) |
| Seat | Adjustable |
| Air-conditioning | Standard temperature |
| Entertainment | Radio |
