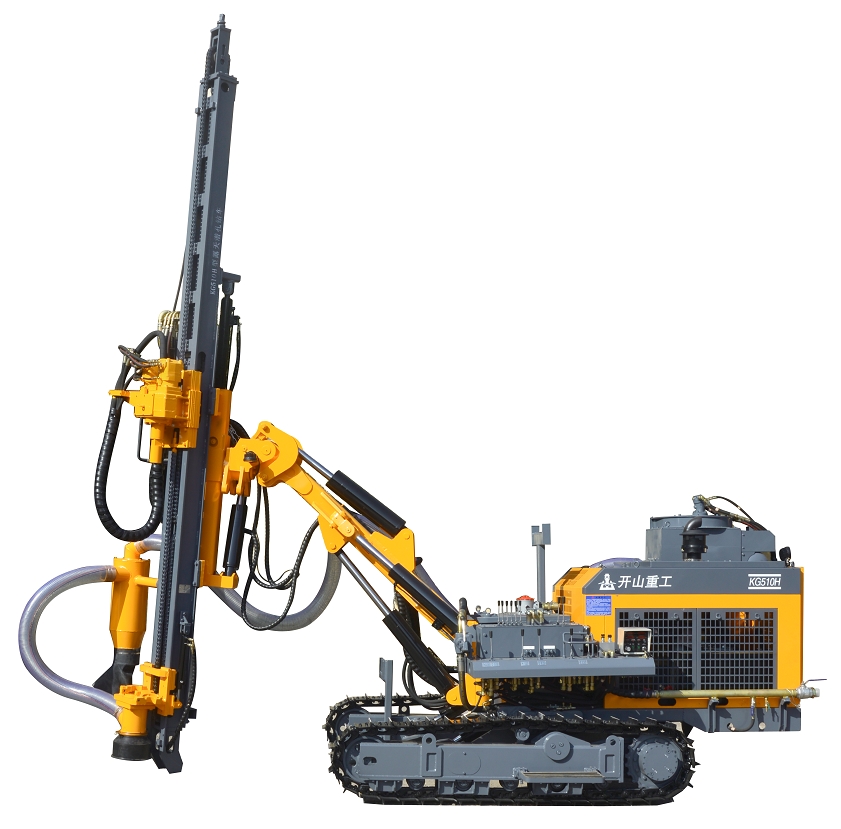

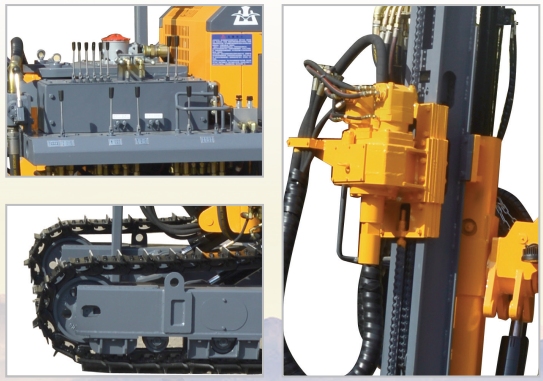

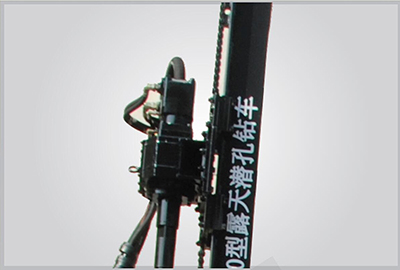

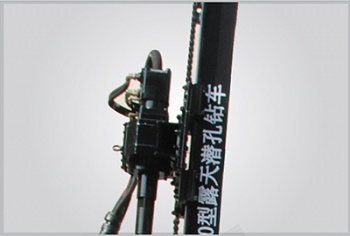

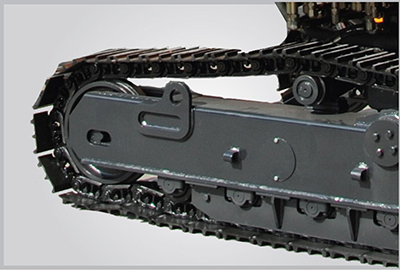

The KG510/KG510H DTH surface drill rig for open use is one of our new and improved pieces of equipment used for mining exploration on diesel-engine emissions. Equipped with a Yuchai four-cylinder engine (China III), the drill rig meets all relevant national standards for emissions and environmental impact. The folding frame track and four-wheel drive combine with track leveling and a plunger piston walking motor improve the working pressure and climbing capacity of the unit.
The KG510H down the hole drill rig for open use is equipped with a dust collector, thus making operation more environment-friendly and reliable.
Brief Parameters
Drilling diameter: Φ105-152mm
Depth of economical drilling: 25m
Method of Feed: Oil cylinder-leaf chain
Feed stroke: 3000mm
Supporting power: YC4DK80-T302(58KW/2200r/min）/Yuchai YC4DK80-T302(58KW/2200r/min)
Technical Parameters

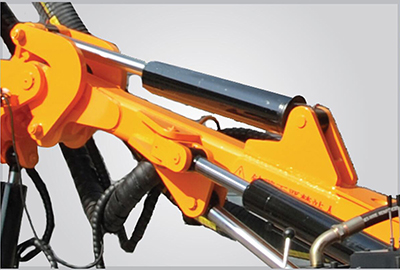

| Model of drill rig | KG510 | KG510H |
| Weight of complete machine | 6500KG | 7000KG |
| Outer dimensions | 6800×2200×2850mm | 6800×2450×2850mm |
| Drilling Hardness | f=6-20 | |
| Drilling diameter | Φ105-152mm | |
| Depth of economical drilling | 25m | |
| Rotary speed | 0-100rpm | |
| Rotary torque | 3000N·m | |
| Lifting force | 40KN | |
| Method of Feed | Oil cylinder-leaf chain | |
| Feed strock | 3000mm | |
| Travelling speed | 0-3.5km/h | |
| Climbing capacity | ≤30° | |
| Ground clearance | 440mm | |
| Tilt angle of boom | Down: 135°, up: 50°, total: 185° | |
| Swing angle of boom | Left: 50°, right: 50°, total: 100° | |
| Pitch angle of drill boom | Down: 50°, up: 25°, total: 75° | |
| Swing angle of drill boom | Left: 45°, right: 45°, total: 90° | |
| Leveling angle of track | ±10° | |
| Compensation length of beam | 900mm | |
| Supporting power | YC4DK80-T302(58KW/2200r/min）/Yuchai YC4DK80-T302(58KW/2200r/min) | |
| DTH hammer | K4 | |
| Drilling rod | Φ76×3morΦ89×3m/Φ76×3m or Φ89×3m | |
| Air consumption | 13-22m³/min | |
| Maximum height of horizontal hole | 2850mm | |
| Minimum height of horizontal hole | 900mm | |
