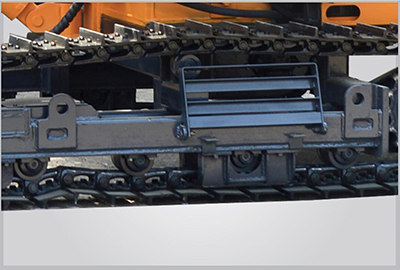

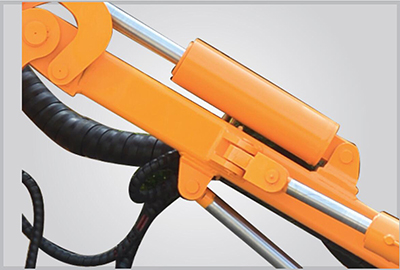

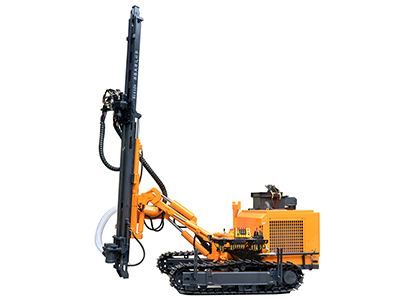

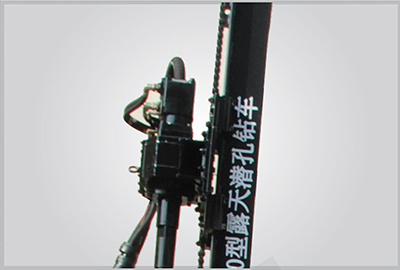

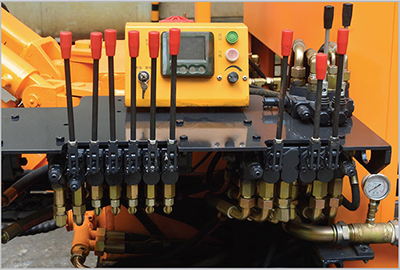

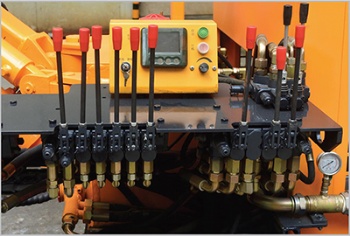

The KG410/KG410H down the hole drill rig is particularly suited for operation in open pit mines and stone quarries. It comes equipped with a Yuchai four-cylinder engine (China III) and meets national standards for emissions and environmental impact. The folding frame track, four-wheel drive, and plunger piston tramming motor optimize the working pressure and climbing capacity of the machine. The expanded pitch and lifting-arm hydraulic cylinder allow the drill rig to meet the operating requirements in extreme positions. The double-motor rotation increases the rotary torque and revolving speed. The lifting cylinder and chain are expended to increase lifting force and reliability. The thickened profile folder is used for housing, thus improving intensity and rigidity. The additional ring makes handling and lifting more convenient.
The KG410H down the hole drill rig for open use is equipped with a dust collector, thus making operation more environment-friendly and reliable.
Brief Parameters
Drilling diameter: Φ90-115mm
Depth of economical drilling: 25m
Method of Feed: Oil cylinder-leaf chain
Feed stroke: 3980mm
Supporting power：YCD4R23T8-80(59KW/2400r/min）/Yuchai YCD4R23T8-80(59KW/2400r/min)
Technical Parameters
| Model of drill rig | KG410 | KG410H |
| Weight of complete machine | 4500KG | 4700KG |
| Outer dimensions | 6000×2100×2000mm | 6000×2350×2000mm |
| Drilling hardness | f=6-20 | |
| Drilling diameter | Φ90-115mm | |
| Depth of economical drilling | 25m | |
| Rotary speed | 0-120rpm | |
| Rotary torque | 1800N·m | |
| Lifting force | 40KN | |
| Method of Feed | Oil cylinder-leaf chain | |
| Feed stroke | 3980mm | |
| Travelling speed | 0-2.5km/h | |
| Climbing capacity | ≤30° | |
| Ground clearance | 280mm | |
| Tilt angle of beam | Down:135°, up: 50°, total: 185° | |
| Swing angle of beam | Left: 100°, right: 45°, total: 145° | |
| Pitch angle of drill boom | Down: 50°, up: 25°, total: 75° | |
| Swing angle of boom | Left: 44°, right: 45°, total: 89° | |
| Compensation length of beam | 900mm | |
| Supporting power | Yuchai power YCD4R23T8-80 (59KW/2400r/min) | |
| Drilling rod | Φ64×3m | |
| DTH hammer | M3 | |
| /Air consumption | 10-17m³/min | |
| Maximum height of horizontal hole | 2950mm | |
| Minimum height of horizontal hole | 750mm | |
