Kaishan medium air pressure M3 DTH hammer

Brand Name: Kaishan
Minimum Order Quantity: 1 set
Packaging Details: Plastic/Wooden Case
Delivery Time: 7-10 days
Payment Terms: L/C, T/T, Western Union
Usage: Quarry, Mining, Water well drilling, Foundation piling, Tunneling ...

Inquiry Now

Description

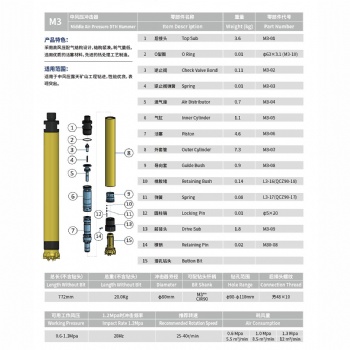

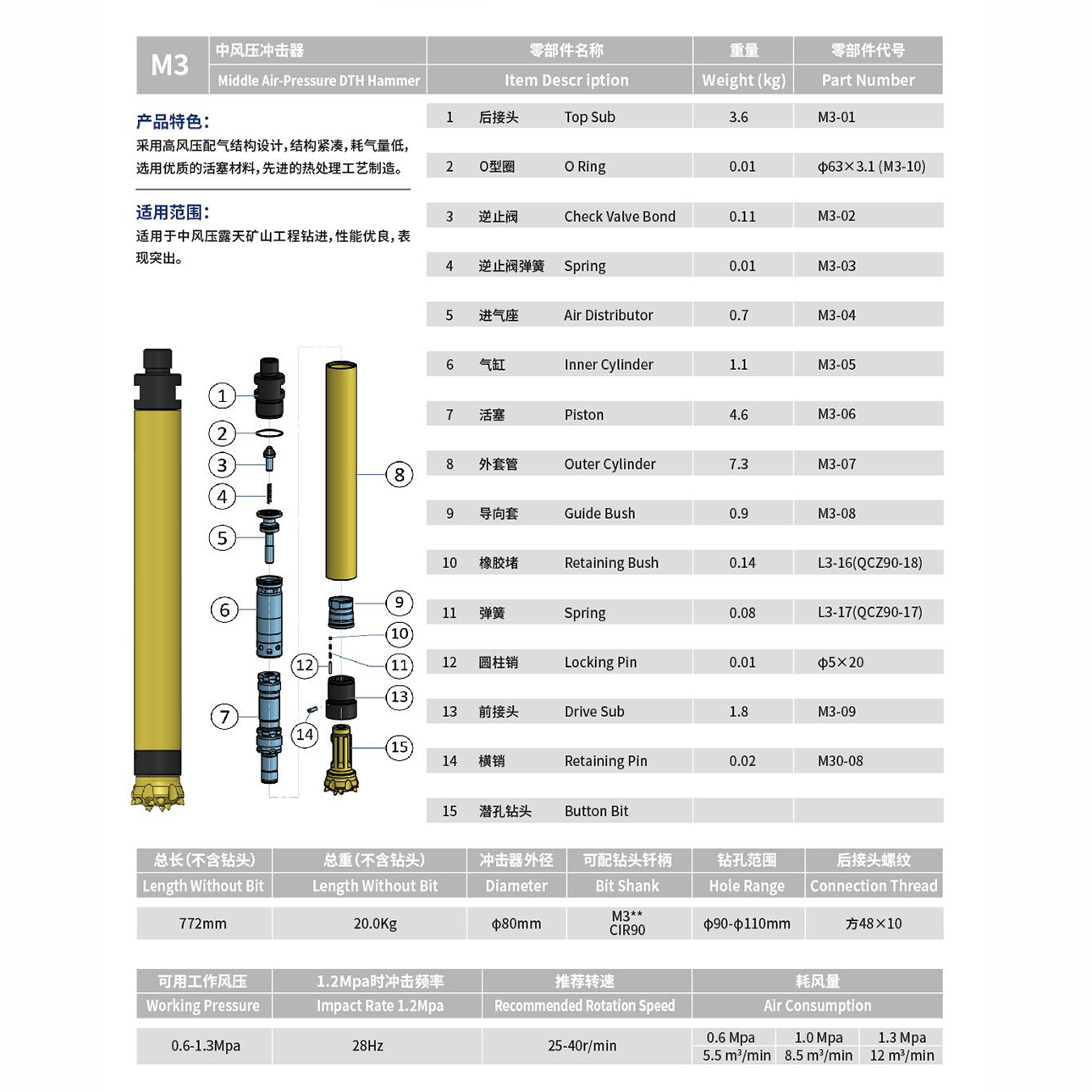

Model	M3
Length(Lessbit)	790 mm
Weight (Lessbit)	21.64 kg
External diameter	84 mm
Bit Shank	CIR90
Hole Range	φ90-130（mm）
Connection Thread	F48X10PIN
WorkingPressure	0.8-1.3MPa
Recommended rotation speed	25~40rpm
AirConsumption	0.6Mpa@5.5m³/min 1.0Mpa@8.5m³/min 1.3Mpa@12m³/min
