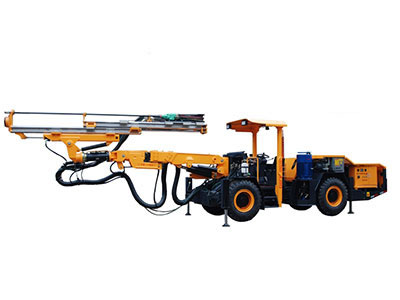

KJ 313 Hydraulic Top Hammer Drilling Jumbo

KJ313 -type full-hydraulic tunnel jumbo is applicable for hard-rock mine tunneling operation of 12-35m2 section, which is specially designed for hitting anchor rod at the same time. It can be used to drill 2.2m-depth bolt hole in the roadway with the height of 4m.

Solid universal arm is equipped with the best section covering shape, and the propulsion beam can turn over by 360° and level off automatically, so as to be convenient for quickly achieving drilling and positioning. Meanwhile, the drill boom can be also used for laterally opening cross drift and anchor-hold drilling operation.

The arrangement of drill carriage shall ensure the view of the manipulator in good condition. The arrangement is in balance condition. The strong four-wheel-drive articulated base plate can ensure that the drill carriage travels flexibly, quickly and safely in the narrow roadway.

High-frequency impact jack drill optimizes the transmission efficiency of impact wave, enhances the drilling rate, reduces consumption of drilling tools and enhances the serviceability rate of equipment by adopting stair piston;

Spacious operation space and a series of automatic functions are conducive for the driver concentrating to safely, quickly and accurately drill.
Each maintenance part is protected well and easy to access and maintain at the same time.

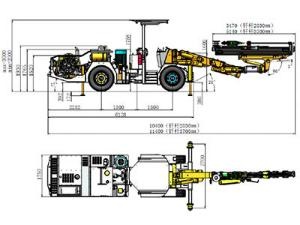

Boundary dimension (including optical auxiliary power station)

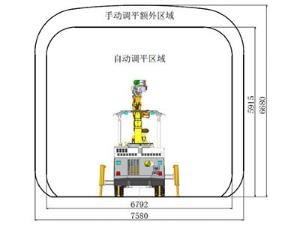

Section hint
