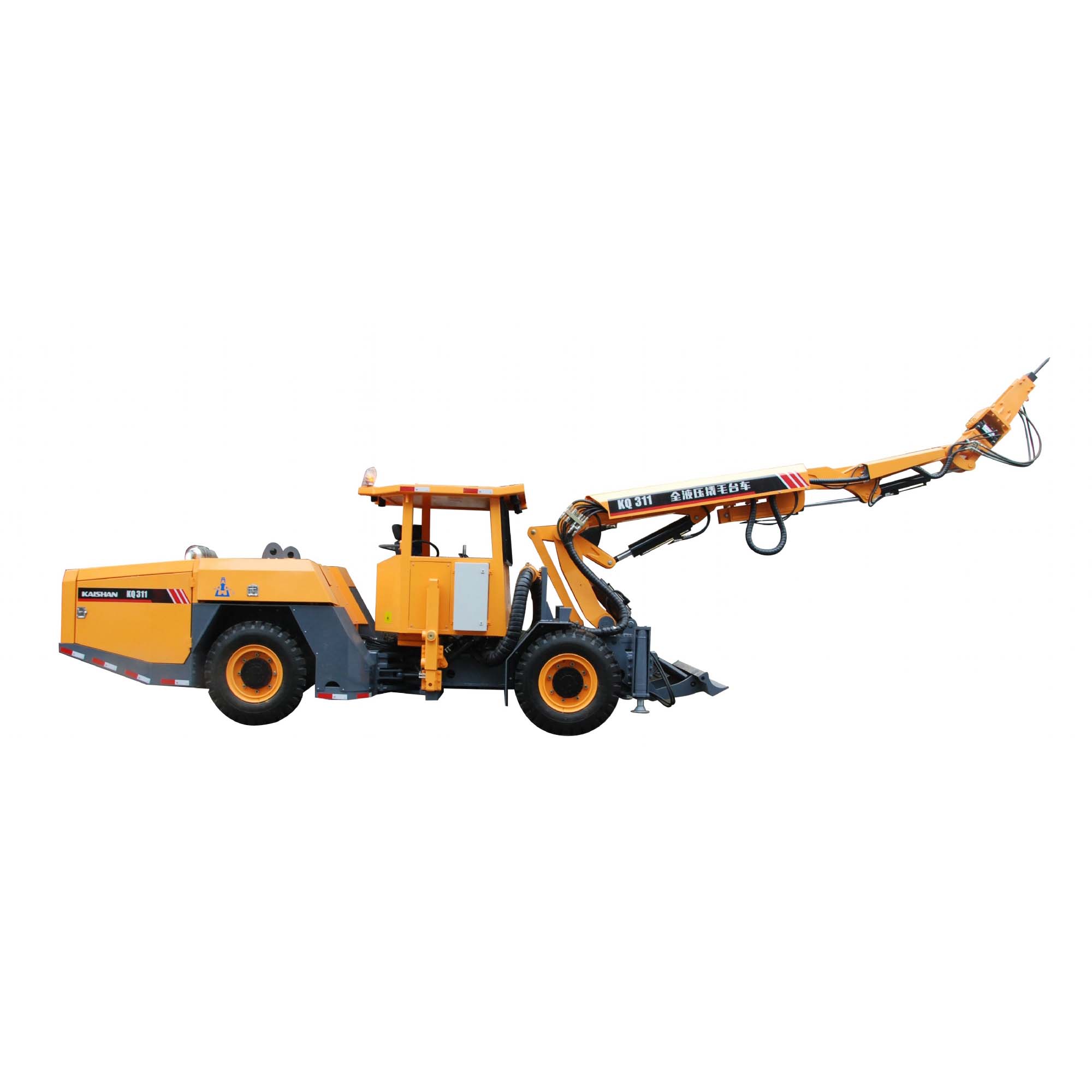

Our KQ311 hydraulic rock drill is powered by diesel engine and is mainly suitable for scaling operations in tunnels and caves of metal mines and various underground projects. The folding arm is fitted with a hydraulic hammer and translation mechanism driven by the rotating oil cylinder. It is capable of all-around operation thanks to the working surface, top plate, side wall and base plate. Meanwhile, the proportion pilot control is applied to the hydraulic system, making it flexible and smooth. The equipment can considerably improve the scaling efficiency and operational safety based on the compact structure, excellent mobility, small turning radius, and powerful climbing capacity.
Technical Parameters

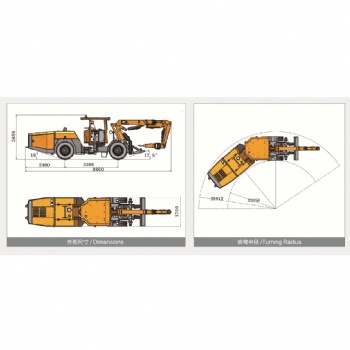

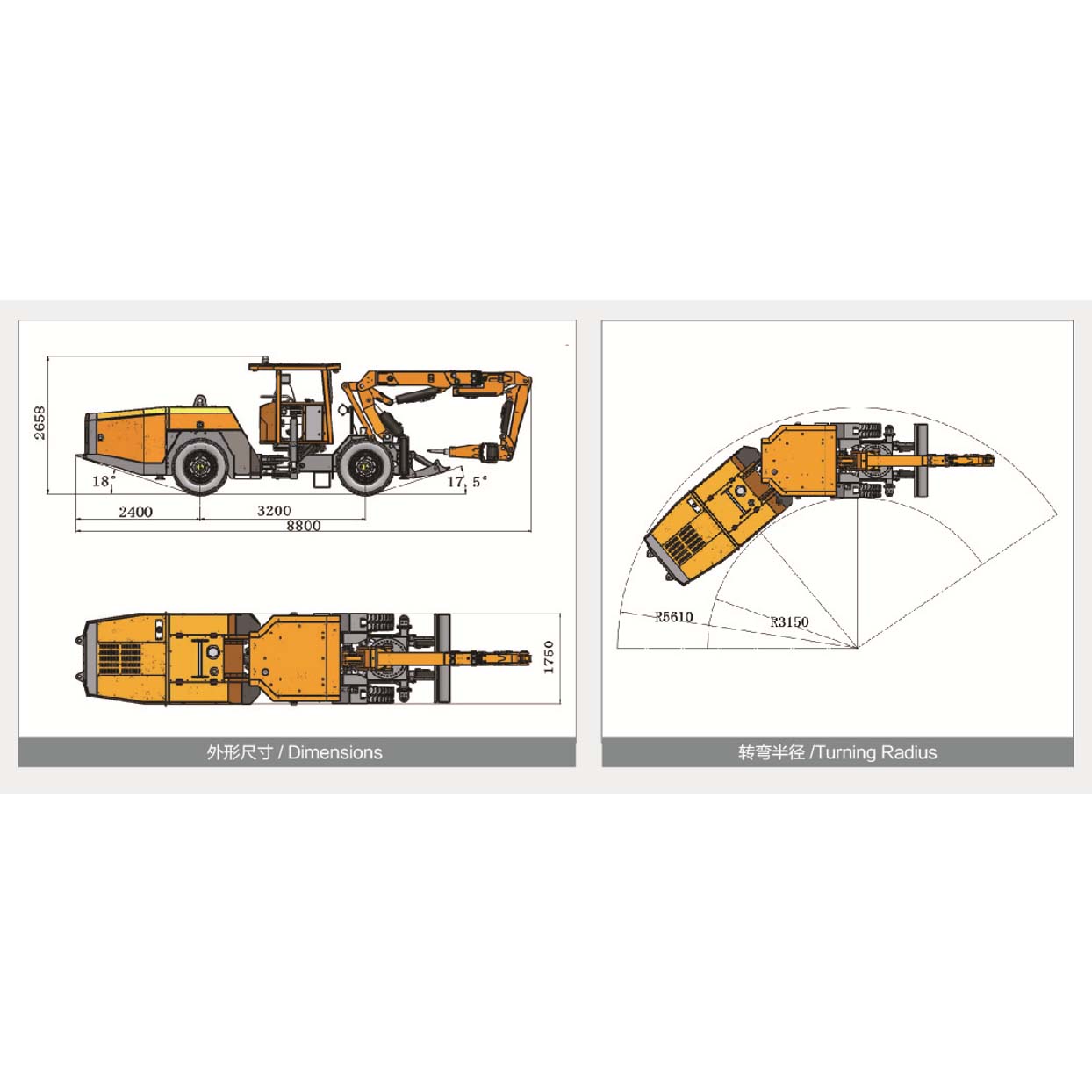

| Dimensions | Length 8800 mm | Hydraulic hammer | SOOSAN SB30 | |
| Width 1750mm | Impact energy | 350J | ||
| Height 2650 mm | Impact frequency | 550-950Hz | ||
| Weight | 12000 kg | Drive flow | 25-40L/Min | |
| Engine | Cummins QSB3.9-C80-31 | Working pressure | 90-125Bar | |
| Power/ speed | 60 kW/2200 rpm | Angle of swing arm | ±30° | |
| Exhaust purification | Exhaust catalyst | Pitch angle of translational arm | 45° | |
| Drive system | Closed hydraulic system for four-wheel driving | Lifting angle of mid-arm | 60° | |
| Pitch angle of front arm | 95° | |||
| Swing angle | ±6° | Pitch angle of hydraulic hammer | 120° | |
| Tires | 11.00-20 | Angle of swing cylinder | ±90° | |
| Steering angle | ±35° | Drill arm expansion and contraction | 1200mm | |

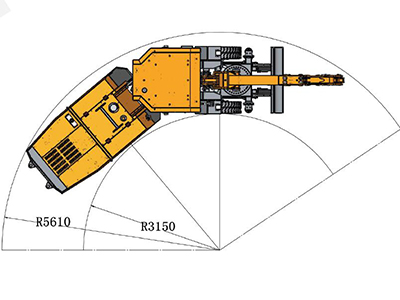

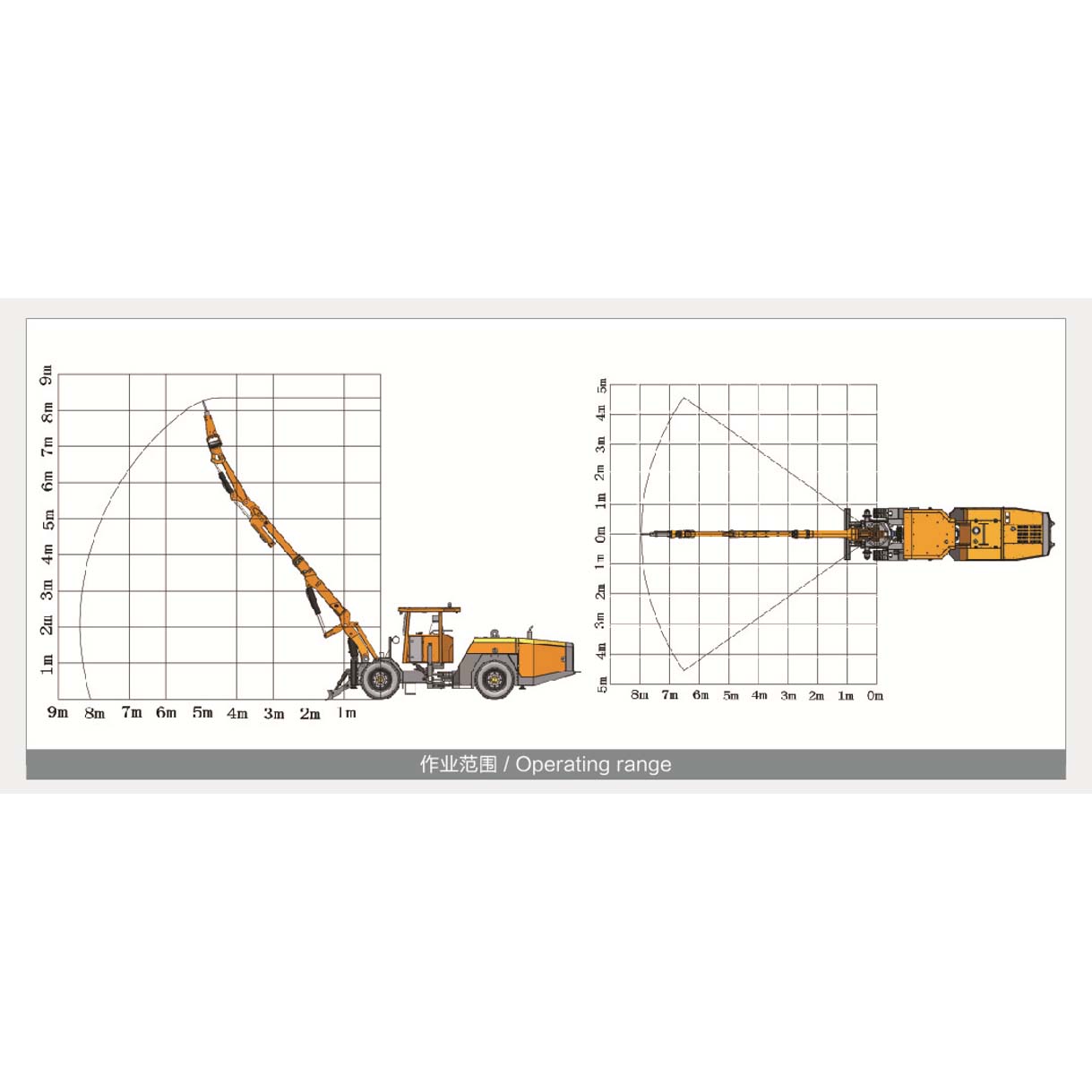

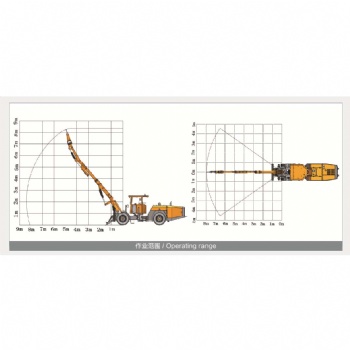

| Turning radius (inner/outer) | 3510/5610 | Maximum working height | 8300mm | |
| Travelling braking | Hydrostatic brake | Maximum working width | 8800mm | |
| Maximum tramming speed | 10km/h | Backward angle of cab | 15° | |
| Maximum climbing angle | 25％（14°） | Power of water pump | 0.5Kw | |
| Wheelbase | 3200mm | Flow of water pump | 2L/Min | |
| Wheel tread | 1400mm | Cab lift | 400mm | |
| Ground clearance | 300mm | |||
