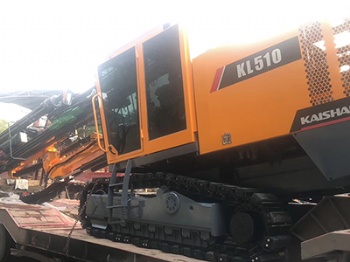

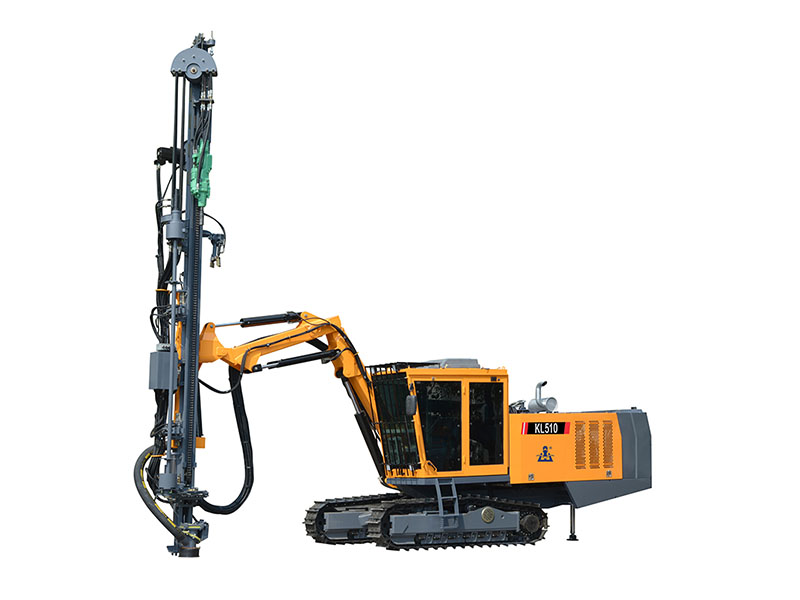

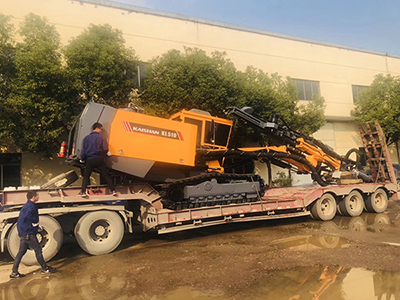

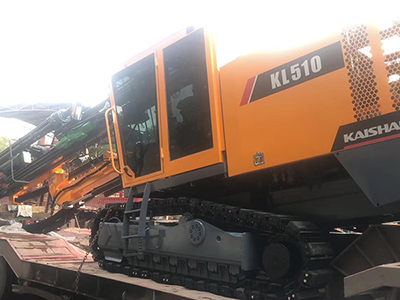

The KL510 hydraulic top hammer drilling rig is designed for open pit quarrying and mining projects. It is outfitted with a standard drill rod with a diameter of 45/38 millimeters. It allows for vertical, inclined, and horizontal blast hole drilling with a range of 64-115 millimeters. It has a wide range of applications including excavation, cutting, pipelining, foundation drilling, and open-pit mine drilling.
in cutting excavation, pipelining, foundation and open-pit mine drilling.
Features
Each KL510 drilling rig is equipped with a hydraulic top hammer rock drill(24kW) imported from Europe. With powerful rotary toque, impact power, adequate hole flushing ability, and an advanced control system, it is capable of drilling in complex rock conditions.
The drilling rig is equipped with an efficient screw air compressor which saves energy.
Technical Parameters
| Dimensions and weight | |
| Transport dimensions (length*width*height) | 10500*2450*3200mm |
| Weight | 16500kg |
| Articulated drill boom and chassis | |
| Ground clearance | 430mm |
| Frequency modulation angle of track | 10° up,10° down |
| Tramming speed | 0-3.5km/h |
| Climbing capacity | 30° |
| Traction | 120kN |
| Hydraulic rock drill | |
| Model | HC95LQ |
| Impact power | 24KW |
| Impact pressure | 180-200bar |
| Impact frequency | 48-57HZ |
| Impact frequency | 955Nm |
| Maximum rotary pressure | 210bar |
| Maximum rotary speed | 150rpm |
| Shank lubrication | Air/oil mist |
| Fuel consumption of lubrication | 15drops/min |
| Drilling diameter | 64-115mm |
| Drill boom, advancing beam and rod changer | |
| Lifting of drill boom | 94° |
| Swing of drill boom | -18°/50° |
| Lifting of folding boom | 120° |
| Swing angle of Beam | -93°/20°；-20°/94° |
| Carriage inclination | 120° |
| Compensation stroke | 1353mm |
| Stroke of rock drill | 4150mm |
| Maximum propelling force | 19KN |
| Feed Method | Motor-roller chain |
| Depth of economical drilling | 25m |
| Number of rods | 6+1 |
| Specification of drill rod | T45X3660/T38X3660 |
| Thread lubrication of drill rod | Pneumatic lubricating pump |
| Power unit | |
| Engine | cummins QSC8.3-C240-30 |
| Number of cylinders | 6 |
| Output power | 179KW/2200rpm |
| Drive type | Front-rear output |
| Hydraulic pump | 2×variable displacement piston pump+2×gear pump |
| Air Compressor | Zhejiang Kaishan |
| Capacity of air compressor | 8.5m³/min |
| Air pressure | 10bar |
| Fuel tank | 340L |
| Control system | |
| Travelling | Hydraulic pilot |
| Drill boom | Hydraulic direct control |
| Rock drilling | Pilot control(electric/hydraulic) |
| Opening control | Stepless |
| Impact control | Control of shock pressure |
| Anti-jamming | Electric/hydraulic |
| Voltage | 24V, DC |
| Hydraulic system | |
| Travelling, drilling | Load sensing |
| Filter fineness | 10µm |
| Cooling capacity | Ambient temperature: +50° |
| Hydraulic oil tank | 250L |
| Dust-collecting system | |
| Capacity of dust collector and vacuum degree | 20m³/min; 1000mm water column |
| Filter element/materia | 8/fiber |
| Filtering area | 7m² |
| Power of hydraulic motor | 7.5KW |
| Cab | |
| Safety cab | Meet the requirements of FOPS and ROPS |
| Indoor noise level | Below 85dB(A) |
| Control function | Drilling, travelling, movement of drill boom and rod changer |
| Seat | Adjustable |
| Air-conditioning | Standard temperature |
| Entertainment | Radio+MP3 |
